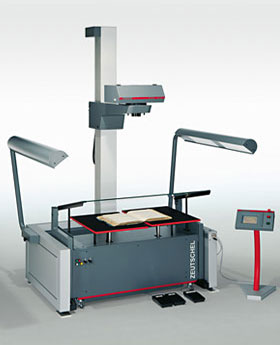

The intelligent microfilm camera system for universal applications.
|
|
| Description | Microprocessor controlled camera system of modular design for universal applications |
| Microfilm | Unperforated or perforated roll film 35 mm und 16 mm on reels 30.5 m (100 ft) or thin film 65.5 m (215 ft) |
| Size of Originals | OK 400: max. 1350 x 960 mm (>A0/E-size) OK 401: max. 1080 x 710 mm (>A1/D-size) |

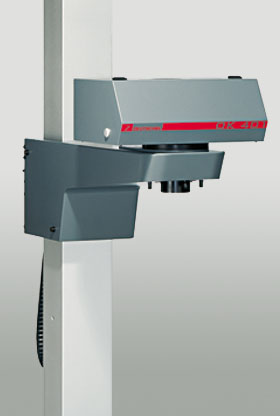

| Camera head | Removable, 360° rotation, variable shutter speed, display for exposure number, film length, warning film end on control panel with signal tone. Integrated view of frame size projection, continuously variable frame mask (0-45 mm) with 4 programmable masks, variable film step 1-9 mm, automatically adjusted film advance, film leader and trailer semi automatic |
| Blip and no. fade-in | Fade-in of 8 alphanumeric characters (between frames) and 3-level blip, adjustable blip position (to the mid or left-side position) |
| Lens | High resolution lens. Automatic focusing controlled by microprocessor (adjustable focus level) |
| Reduction ratio | 7 x to 36 x, continuously adjustable |
| Exposure control | Automatic exposure control with manual override, measured through lens on camera console. Exposure measurement with memory function especially designed for point measurement with the optional mobile photocell |
| Top Lights | 4 flourescent (“cold”) lights |

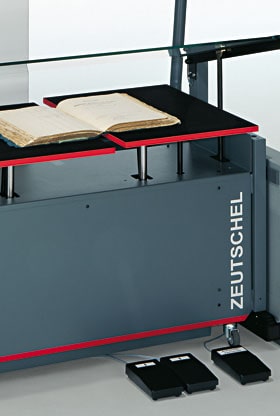

| Camera Tables | Choice of roll-in/roll-out camera tables, easy to interchange on rails (see separate brochures) On request bookcradles OT 180, OT 180 H and OT 180 SP, bookcradle OT 90 for old books; , backlight table (with glass plate – optional), newspaper table and special tables (on request) |

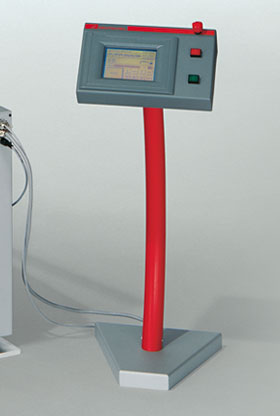

| Control panel | Input on functional camera keyboard with touch-panel. Optional foot pedal for book cradle and exposure control |
| Power requirement | 230 V, 50/60 Hz, 600 W Other voltages on request |
| Safety | The camera system fulfills VDE (German) and CE safety requirements |
| Dimensions | 2500 mm x 1385 mm x 2510 mm (w x d x h, incl. top lights) |
| Weight | approx.. 250 kg incl. copy board |
| Options | Kit for color filming, front edge positioning of original acheived by automatic positioning of camera tables (only for A1/Dsize tables), automatic fade-in of 3-level blip, automatic fade-in of 8 alphanumeric characters (in the camera head), mobile photocell for local point-measurement, foot pedal for exposure, ergonomical footrest with integrated foot pedals for book cradle and exposure. More accessories on request |
