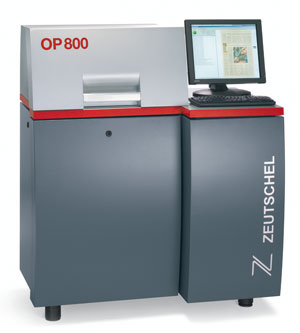

Archive Writer OP 800

The long-term preservation solution for all digital files.

  • Maximum 132 Mio. Pixel optical resolution
  • For all standard files (for example tiff, jpeg, jp2, pdf)
  • High resolution microfilm b/w, grayscale (halftone) or color
  • Color enhancement via integrated ICC conform color managment
  • Highest productivity
  • Wide range of image processing tools for perfect file conversion in batch mode
  • Easy operation
  • Film capacity up to 600 m
  • 16/35 rollfilm, landscape and portrait
  • Automatic imprinting of metadata and film index

Description with the ArchiveWriter OP 800 HR all digital data can be archived easy and fast on microfilm for long term preservation
Applications preservation of all native digital data (CAD, e-Mail, Word, Excel, etc.) and digitized data (scanned documents, images etc.)
Formats all standard file-formats in b&w, grey scale and color, e.g. TIFF, TIFF LZW, JPG, JP2, BMP, PDF, PDF A, JPM, GIF etc.
Microfilm roll film b/w, half tone and color, 16 & 35 mm on reels 30.5 m, 60 m, 305 m or 600 m
Maximum resolution 132.7 megapixel
For 35 mm roll film 6815 dpi
For 16 mm roll film 16832 dpi
Max. film mask 35 mm 32.2 x 57 mm (standard mask 32 x 45 mm)
Max. film mask 16 mm 13.0 x 23.1 mm (standard mask 12.5 x 18 mm)
Film mask and film step continuously adjustable
Recording formats full-frame, duplex, duo and multi-frame
Image processing integrated ICC conform color management
Software Zeutschel Software OmniPlot
Operating system Windows 10 IoT (64 bit)
Dimensions (w x d x h)
1280 x 806 x 1498 mm
Accessories PC and monitor
