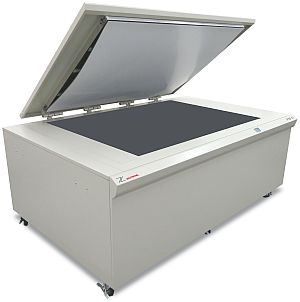

DIN A0 Flatbed Scanner FB0

Fast and high quality color CCD scan technology

Product advantages

  • Single CCD Sensor, Single Camera System, no stitching
  • High speed scan mode – approx. 17 sec. at 300 dpi DIN A 0
  • resolution continuously adjustable from 50 dpi to 2000 dpi
  • easy and simple scanning with highest accuracy
  • The scanner is equipped with Dual White LED – for bi-directional scanning
  • Adjustable light intensity best scan results without shadows
  • Max. scan area 1270 mm x 920 mm
  • Gigabit Ethernet interface connects with PCs
  • Foot switch as an option


    • Additional optional software

    Aupier-GigaStitch
    - Professional Image Editing & Stitching software

    KB-Copy Ver2
    -Easy Scan2File and Scan2Copy software
    including Zoom option
Scanner Type DIN A0 Flatbed Color Scanner
Light source Dual White LED for bi-directional scanning
Optical system

High quality optical system, single sensor RGB 3-line CCD, optical resolution 1000 dpi / DIN A0
Document size 1270 x 920 mm (fully covering DIN A0 size)
Resolution continuously adjustable from 50 dpi to 2000 dpi

Scan speed

 approx. 17 seconds at 300 dpi / high-speed mode (DIN A0 size)
Scan accuracy +/- 0,1%, +/- 1 pixel
Scan mode 48 bits
Data output 24 / 36 bit color, 16 / 8 bit gray, 1 bit black and white
Software including software Scan2File
Interface Gigabit Ethernet interface
Dimensions 1,880 x 1,240 x 810 mm (w x d x h)
Weight 280 kg
Power supply AC 100-240 V 50/60 Hz
Host Platform Windows 8 (64 Bit) / Windows 7 (64 Bit) / Windows 10 (64 Bit)
