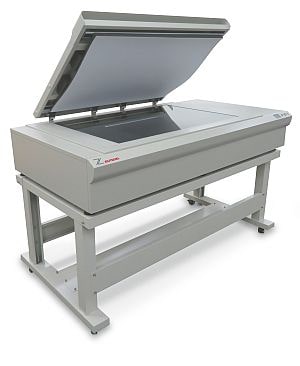

FB 1

Fast and high quality color CCD scan technology.

Product advantages

  • High speed scan mode. 17,5 sec. at 400 dpi DIN A1
  • Resolution continuously adjustable from 50 to 1600 dpi
  • Easy and simple scanning with highest accuracy
  • Single CCD Sensor, Single Camera System, not stitching
  • Max. scan area 609.6 mm x 914.4 mm
  • Gigabit Ethernet interface
  • Easy operation with Scan2File software



    • Additional optional software

    KB-Copy Ver2
    - Easy Scan2File and Scan2Copy software including Zoom option

    Aupier-GigaStitch
    - Professional Image Editing & Stitching software
Scanner Type DIN A1 Flatbed Color Scanner
Light source White LED System
Optical system

Highest quality, single lense optical system
Sensor RGB 3-line CCD
Document size 609.6 mm x 914.4 mm
Resolution continuously adjustable from 50 dpi to 1600 dpi

Scan speed

 20 seconds or less at 400 dpi / standard speed mode (DIN A1 size)
Scan accuracy +/- 0,05%, +/- 1 pixel
Scan mode 48 bit
Data output 24 bit color, 16 / 8 bit gray scale
Software including software Scan2File
Interface Gigabit Ethernet interface
Dimensions 1,600 x 859,5 x 366 mm (w x d x h)
Weight approx. 120 kg
Power supply AC 100-240 V 50/60 Hz 250 VA
Host Platform Windows 8 (64 Bit) / Windows 7 (64 Bit) / Windows 10 (64 Bit)
